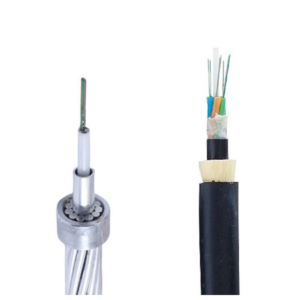

Why Compare ADSS and OPGW Cable Prices?
When planning aerial fiber deployments along power transmission lines or utility corridors, ADSS (All-Dielectric Self-Supporting) and OPGW (Optical Ground Wire) are the two most common cable choices. While both solutions enable reliable fiber communication, their pricing structures, installation costs, and application scenarios differ significantly.
For project owners, EPC contractors, and procurement teams, understanding the price difference between ADSS and OPGW cables is critical to selecting the most cost-effective and technically appropriate solution.
This article provides a clear ADSS vs OPGW cable price comparison, explains what drives cost differences, and helps you decide which option delivers better value for your project.
What Is ADSS Fiber Optic Cable?
ADSS cable is a non-metallic, self-supporting aerial fiber optic cable designed to be installed on existing poles or power transmission towers without electrical grounding.
Key characteristics:
- All-dielectric structure (no metal components)
- Installed on phase or side positions of power towers
- No power outage required during installation
- Lower installation complexity
ADSS is widely used in:
- Telecom aerial networks
- FTTH backbone routes
- Power grid communication retrofits
- 10kV–220kV transmission line corridors
What Is OPGW Cable?
OPGW (Optical Ground Wire) combines optical fibers with a metallic ground wire, serving both lightning protection and communication functions.
Key characteristics:
- Metallic structure (aluminum-clad steel or aluminum alloy)
- Installed at the top of transmission towers
- Requires power line shutdown for installation
- High mechanical strength and excellent lightning protection
OPGW is commonly used in:
- New power transmission line construction
- High-voltage and ultra-high-voltage grids
- Utility-owned private communication networks
ADSS vs OPGW Cable Price Comparison (Material Cost)
From a pure manufacturing perspective, ADSS cable is generally cheaper than OPGW cable.
Typical Cable Price Range (2025)
| Cable Type | Fiber Count | Typical Price (USD/km) |
| ADSS (PE Jacket) | 12–24 cores | $120 – $250 |
| ADSS (AT Jacket) | 24–72 cores | $180 – $350 |
| OPGW (Single-layer) | 12–24 cores | $300 – $500 |
| OPGW (Double-layer) | 24–48 cores | $450 – $800+ |
Why OPGW is more expensive:
- Large amount of aluminum and steel
- Complex stranding process
- Higher raw material volatility
- Strict mechanical and electrical testing
Installation Cost Comparison: ADSS vs OPGW
Cable price alone does not reflect total project cost. Installation expenses often make a bigger difference.
ADSS Installation Cost
- No power shutdown required
- Installed using standard stringing equipment
- Faster construction cycle
- Lower labor and safety costs
OPGW Installation Cost
- Power line outage required
- High safety risk and coordination cost
- Specialized installation crews
- Longer project timelines
In many retrofit projects, OPGW installation cost can exceed the cable cost itself, making ADSS a more economical option overall.
Total Cost of Ownership (TCO) Comparison
| Cost Factor | ADSS Cable | OPGW Cable |
| Cable material cost | Lower | Higher |
| Installation cost | Low | Very high |
| Maintenance cost | Low | Medium |
| Lightning protection | No | Yes |
| Power outage required | No | Yes |
| Best for retrofit projects | ✅ | ❌ |
When Is ADSS the Better Cost Choice?
ADSS cable is usually the most cost-effective solution when:
- Fiber is added to existing power lines
- Power shutdown is not allowed or too expensive
- Span length is under 600–800 m
- Lightning protection is already sufficient
- Project budget is sensitive
Typical ADSS projects achieve 20–50% lower total cost compared to OPGW retrofits.
When Is OPGW Worth the Higher Price?
Despite higher costs, OPGW is preferred when:
- Building new transmission lines
- Lightning shielding is mandatory
- Operating at very high voltage levels (≥220kV)
- Long service life (30–40 years) is required
- Utility owns and controls installation schedule
In these cases, OPGW’s higher upfront price is justified by dual functionality and long-term reliability.
ADSS vs OPGW: Price Is Not the Only Factor
While price is important, final cable selection should consider:
- Electrical field strength
- Installation location on tower
- Required mechanical tension
- Local utility regulations
- Long-term maintenance strategy
A lower cable price does not always mean a lower project cost.
Conclusion: ADSS vs OPGW Cable Price Comparison
From a cost perspective:
- ADSS cable offers lower material and installation costs
- OPGW cable has higher upfront cost but dual functionality
For most retrofit and telecom-driven projects, ADSS provides better overall value. For new high-voltage power transmission lines, OPGW remains the premium but justified choice.
