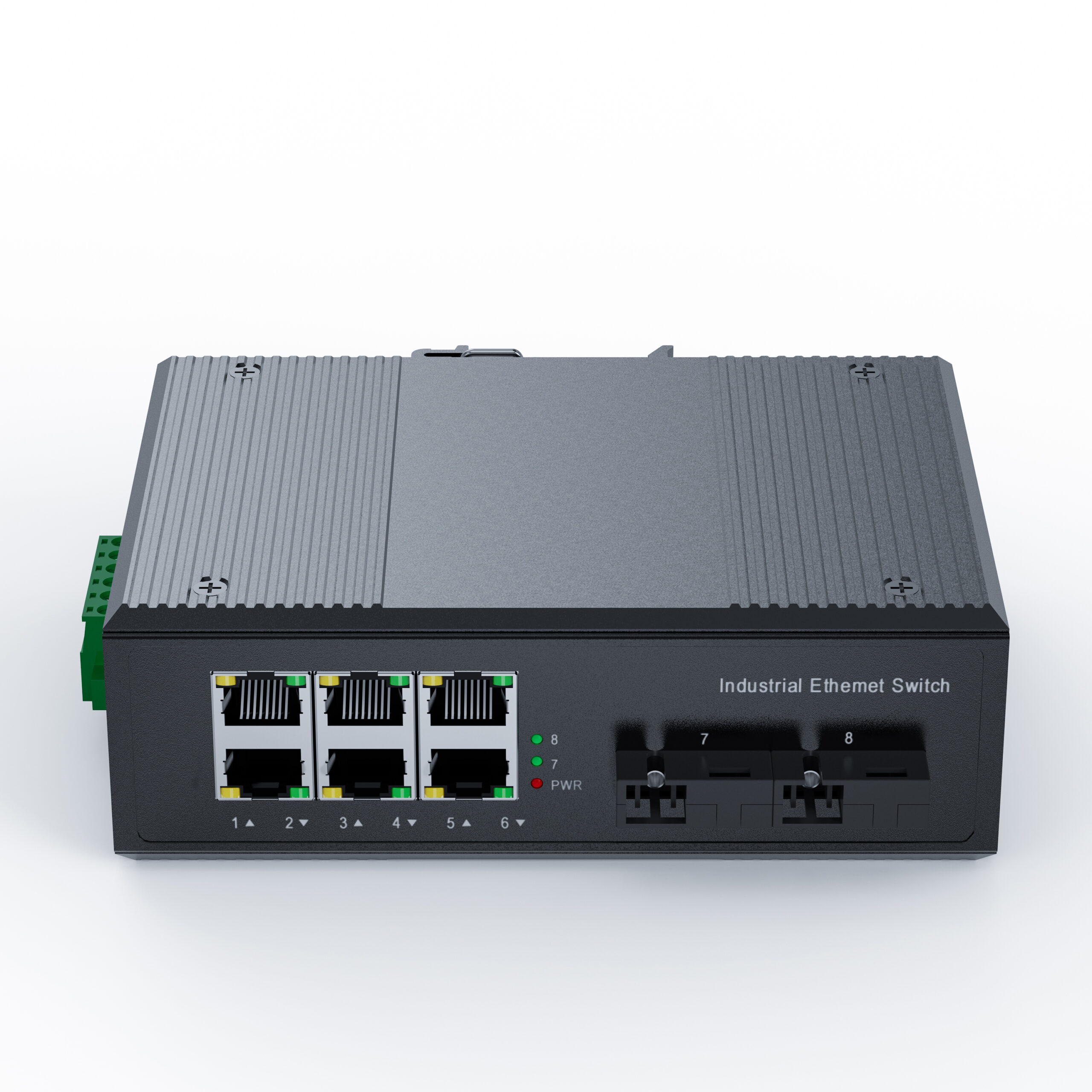

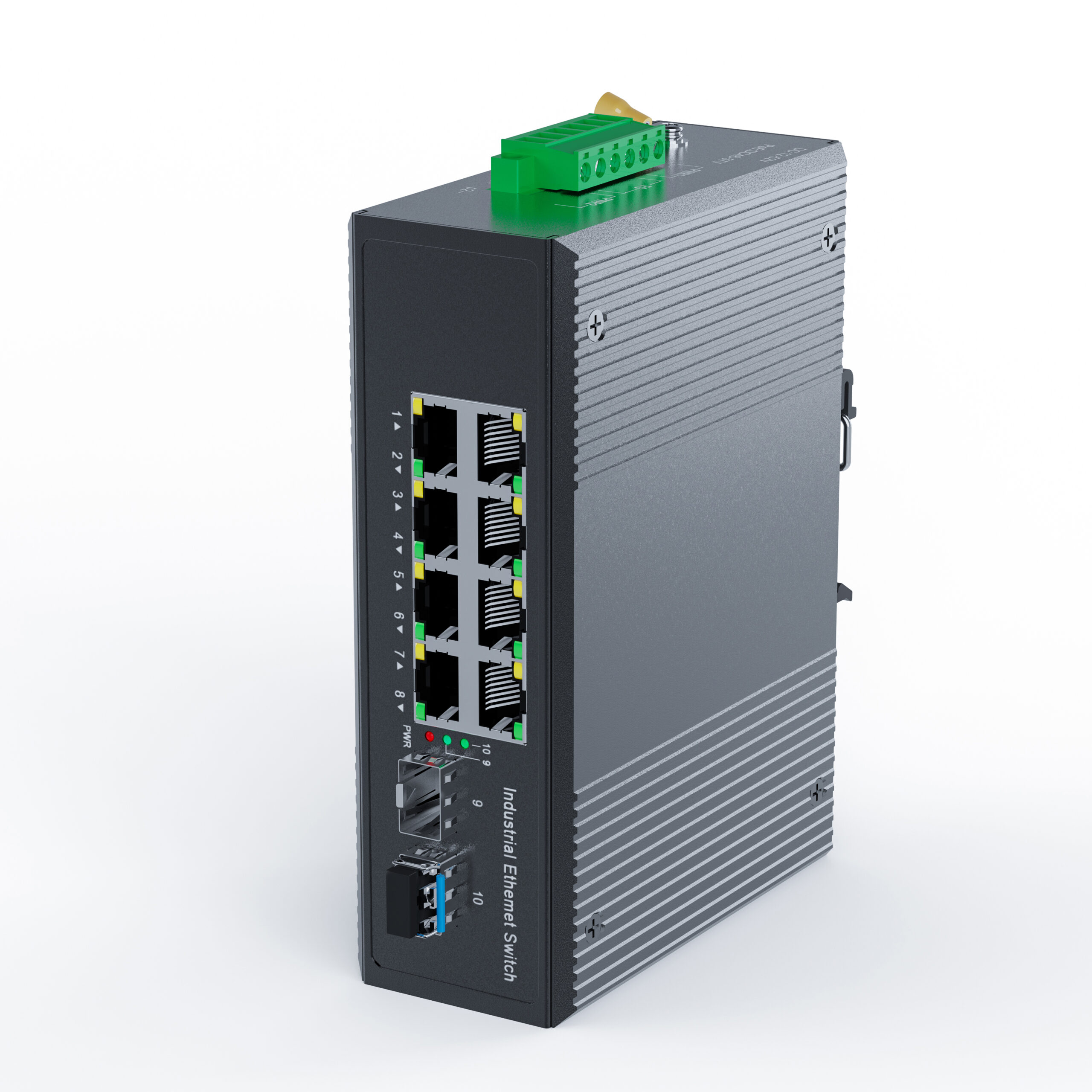

Din Rail Industrial Network Switch

This industrial switch is built with a compact DIN rail-mountable design, making it easy to install in control cabinets and tight spaces. It supports plug-and-play operation with auto-negotiation and auto-MDI/MDIX functions. The switch offers multiple 10/100/1000 Mbps ports to ensure high-speed data communication across industrial networks.

Structure & Design

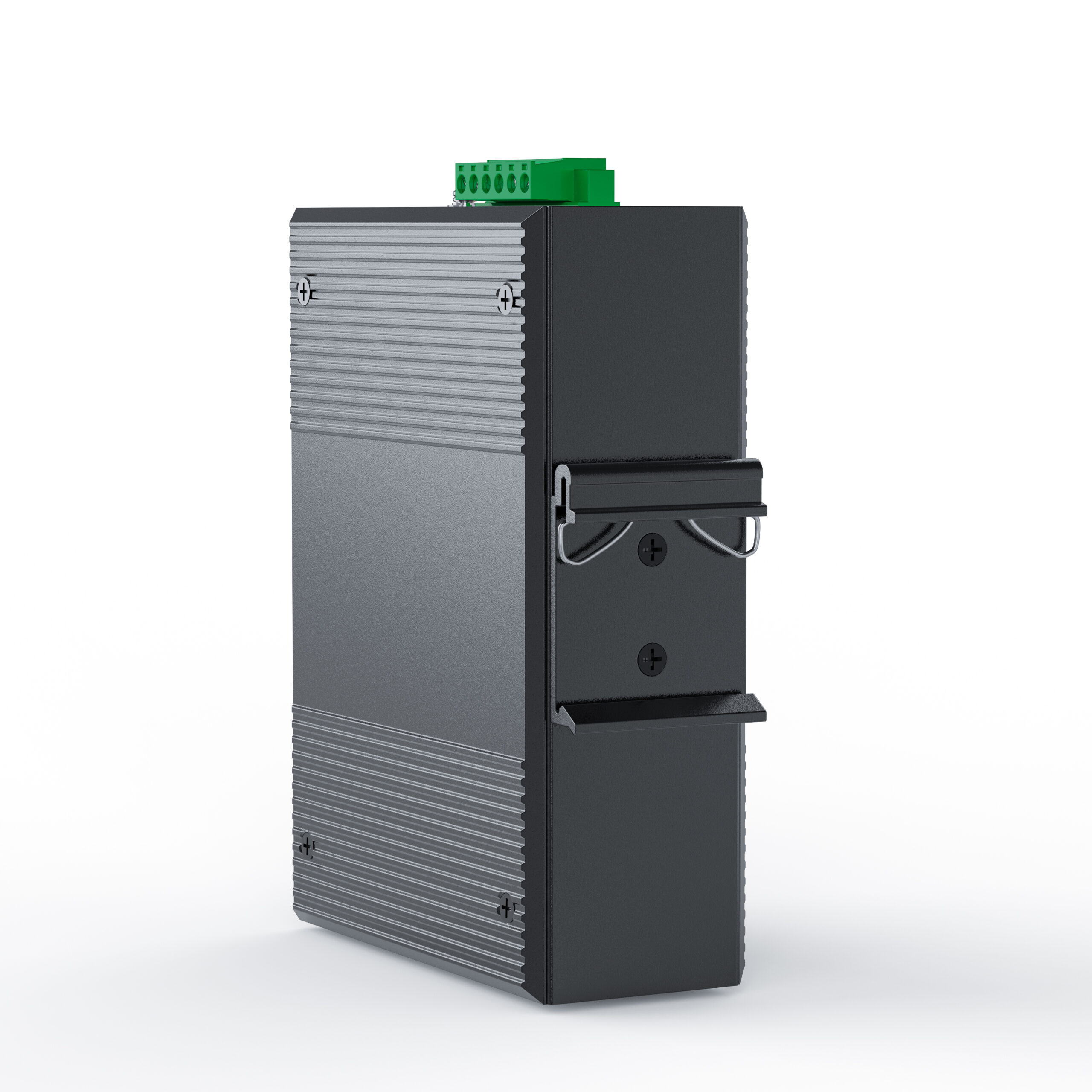

• Mounting: Standard DIN rail mount for industrial control cabinets

• Housing: Rugged metal or aluminum alloy enclosure with IP30 protection

• Ports: 5/8/10/16-port options (10/100/1000 Mbps)

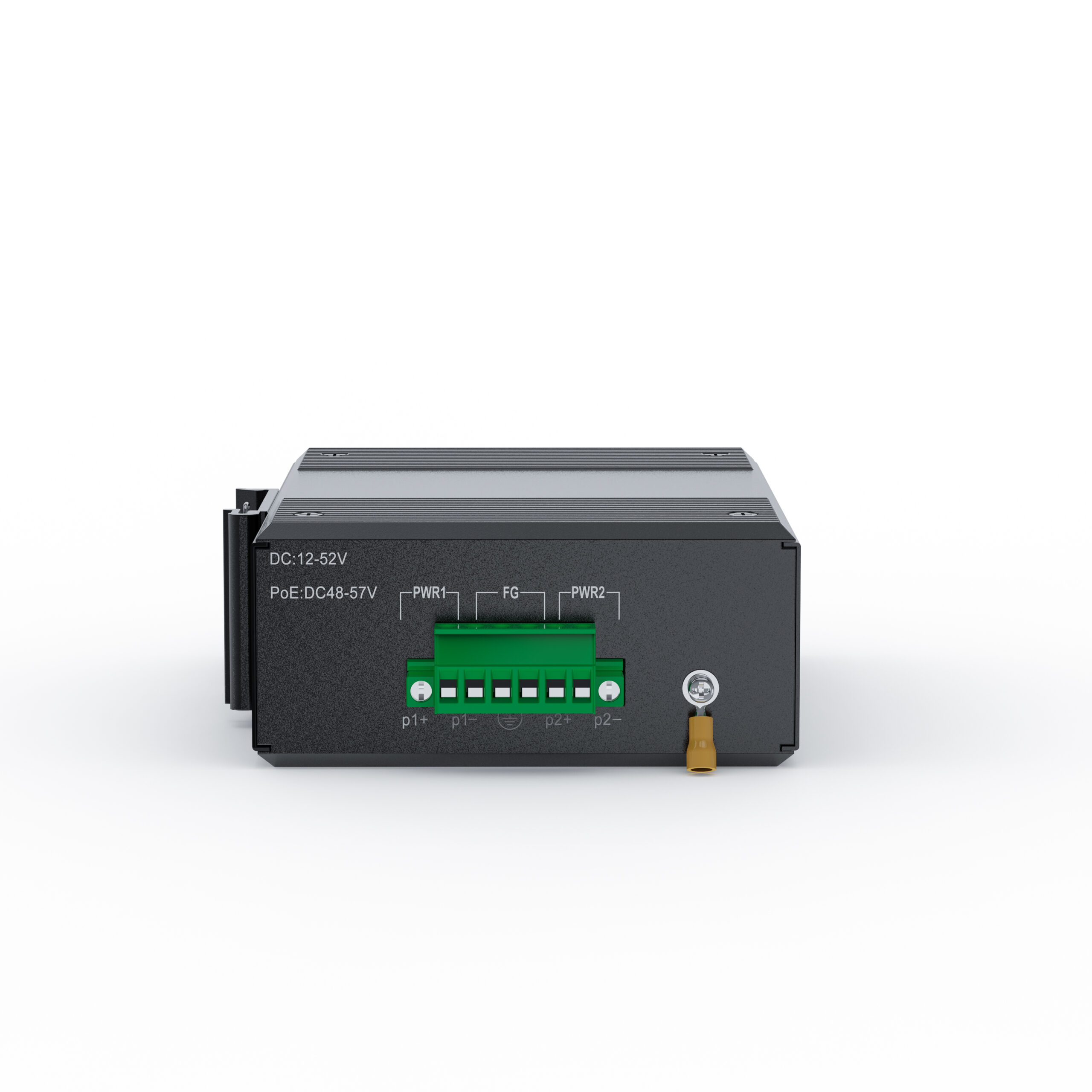

• Power Supply: Dual redundant DC power input (e.g., 12–48V DC) with reverse polarity protection

• Operating Temperature: -40°C to +75°C for reliable use in extreme environments

• LED Indicators: Power, link/activity, and speed status indicators for easy monitoring

Applications

• Industrial automation and control systems

• Smart manufacturing and factory networking

• Security and surveillance systems

• Intelligent transportation systems (ITS)

• Power substations and renewable energy facilities

Advantages

• Rugged Design: Resistant to vibration, shock, and extreme temperature

• Reliable Power Supply: Dual redundant DC inputs ensure network uptime

• Easy Installation: Compact DIN rail mounting saves space

• High Performance: Gigabit Ethernet ports ensure real-time data transfer

• Maintenance-Friendly: LED indicators simplify status monitoring

FAQs

Q1: What is the difference between a DIN rail switch and a standard Ethernet switch?
A DIN rail switch is designed for industrial use, featuring a metal housing, wide temperature range, and DIN rail mounting for control panels.

Q2: Does it support PoE (Power over Ethernet)?
Yes, optional models support IEEE 802.3af/at PoE to power IP cameras, wireless APs, and other devices.

Q3: Can this switch be used outdoors?
The switch itself is for indoor use in industrial enclosures, but it can be paired with a weatherproof cabinet for outdoor installations.

Q4: Is the switch managed or unmanaged?
Available in both unmanaged and managed versions to meet different networking requirements.

Q5: What power input range does it support?
Typically supports 12–48V DC or 24–57V DC (for PoE models), with reverse polarity protection.
