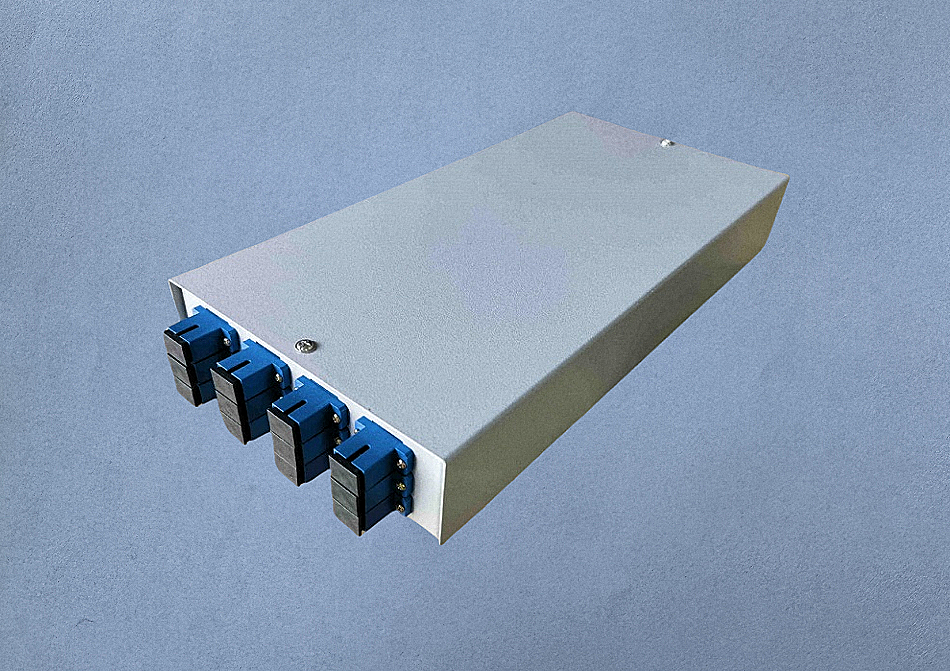

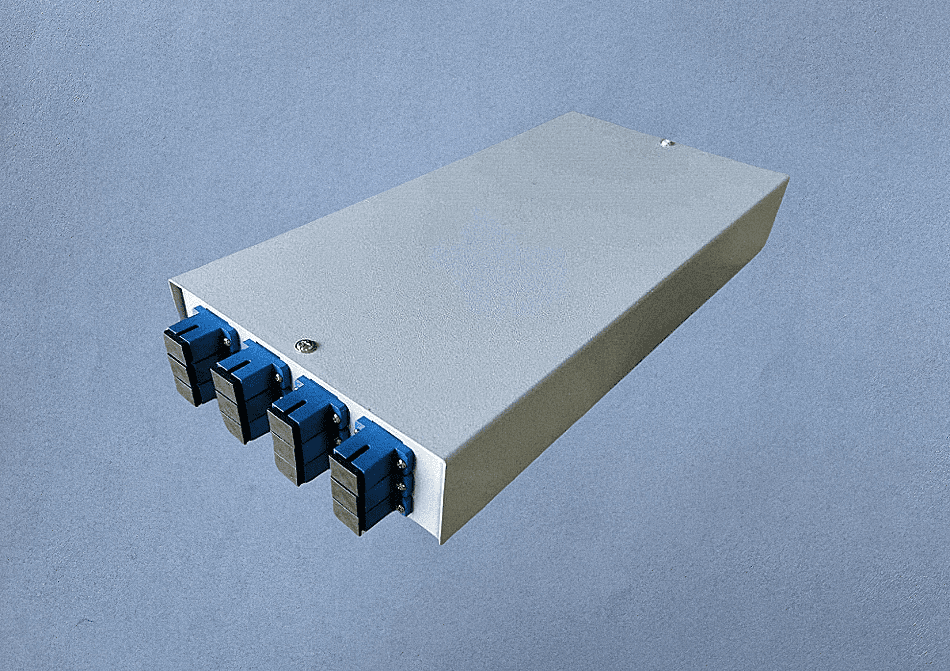

fiber optic terminal box wall mount

A wall mounted fiber terminal box is designed to accommodate fiber optic splicing, termination with adapters, and pigtail storage in one enclosure. It offers an organized way to manage cables and maintain reliable network connections in limited spaces such as apartment corridors or equipment rooms.

Structure & Design

• Capacity Options:

  • Supports 2 to 48 fibers, depending on model size

  • SC, LC, FC, or ST adapter compatibility

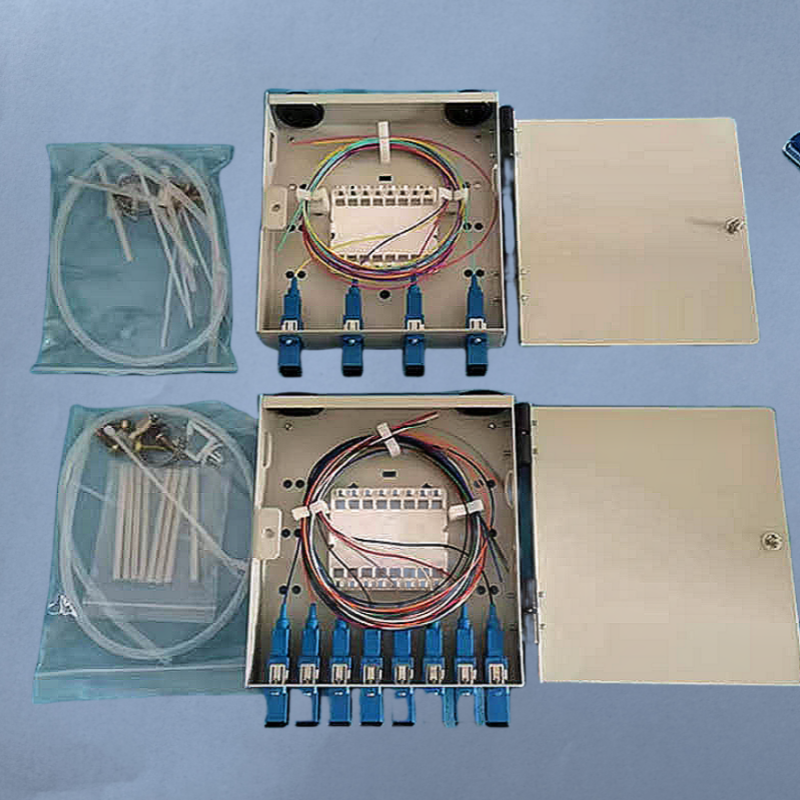

• Internal Components:

  • Splice tray(s) for fiber fusion splicing

  • Adapter panel for connector insertion

  • Pigtail routing area and fiber storage loops

  • Cable entry/exit ports with rubber grommets

• Material:

  • Cold-rolled steel or high-strength plastic (PC/ABS)

  • Surface finish: powder-coated, corrosion-resistant

• Installation:

  • Wall mount with screws or dowels

  • Optional key lock or snap-fit cover

  • Indoor or sheltered outdoor use

• Dimensions & Sizes:

  • Various sizes available (e.g., 220×200×55 mm for 12-core box)

  • Custom sizes and port counts upon request

2. Applications

• FTTH and FTTB deployments

• Building entrance points for optical distribution

• Indoor corridor or basement wiring systems

• Equipment room termination management

• Integration with patch cords, pigtails, and splitters

3. Advantages

• Compact wall-mount design saves space

• Integrates splicing, termination, and cable management

• Durable construction for long-term indoor or semi-outdoor use

• Supports multiple adapter types and configurations

• Easy installation and maintenance access

• Protection from dust, stress, and mechanical damage

• Optional lockable design to enhance safety

4. FAQs

• Q1: What’s the maximum fiber capacity?
  It depends on the box model—commonly from 2 up to 48 cores.
• Q2: Can this box be used outdoors?
  It is suitable for sheltered outdoor locations or indoor environments. For full outdoor use, we recommend waterproof terminal boxes.
• Q3: Is it compatible with PLC splitters?
  Yes, mini PLC splitters can be integrated into most wall-mounted boxes with enough internal space.
• Q4: How do I manage incoming and outgoing cables?
  The box includes entry/exit ports with rubber seals, fiber routing guides, and storage areas for slack fiber.
• Q5: Do you provide fully loaded terminal boxes?
  Yes. We offer options with pre-installed adapters, pigtails, and splice trays based on your configuration needs.
