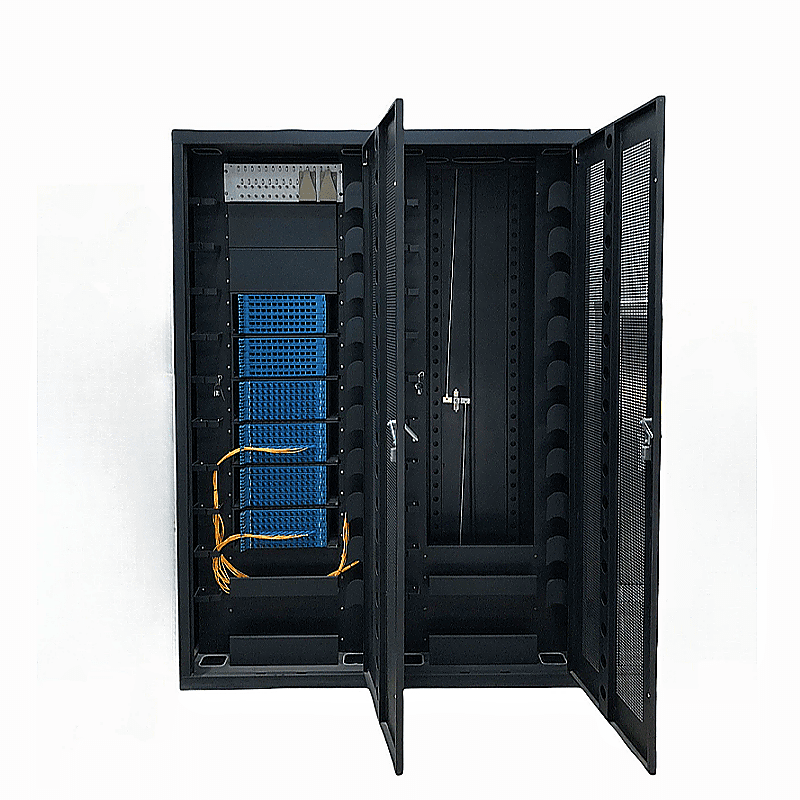

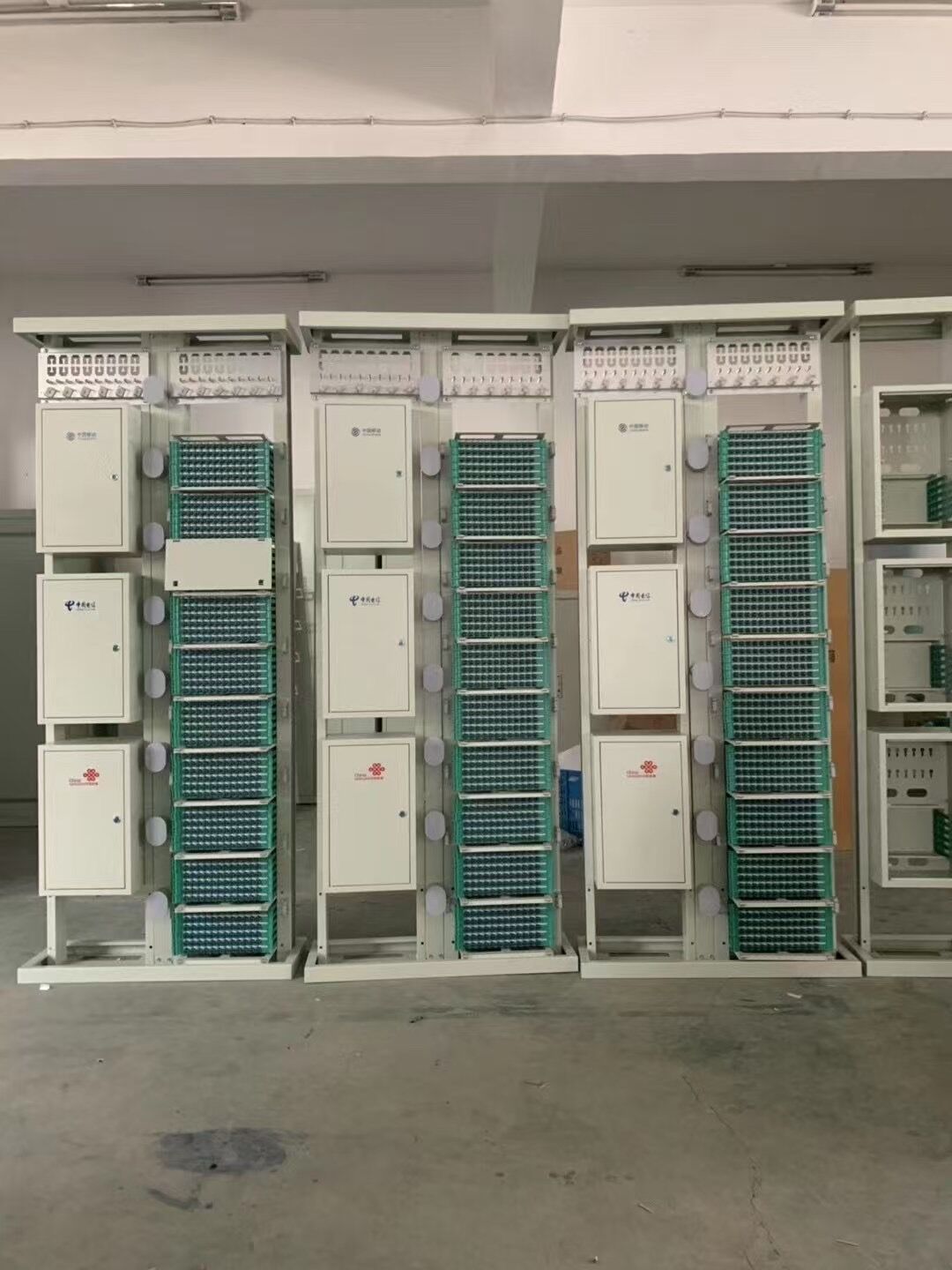

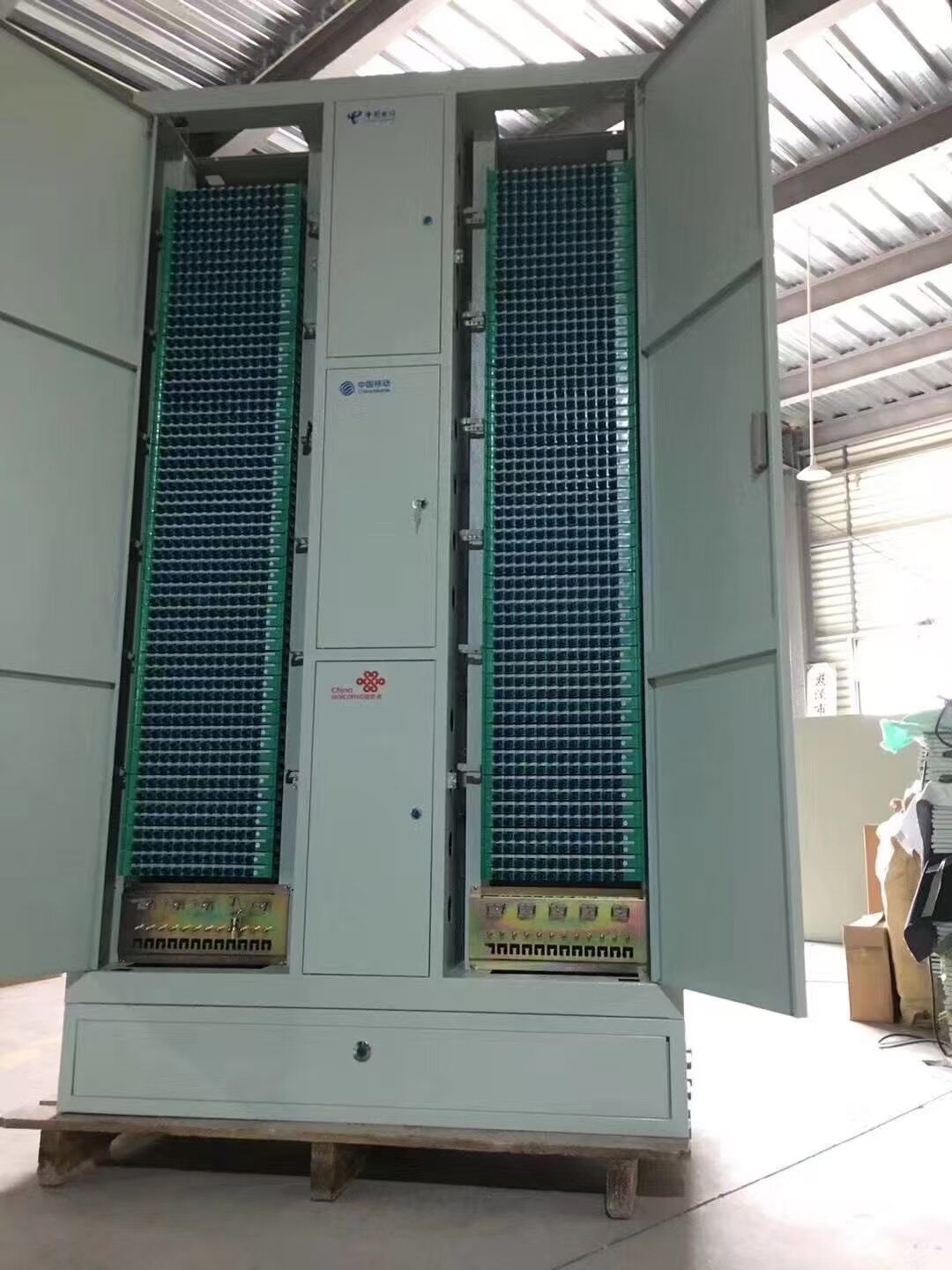

Main Distribution Frame

The Main Distribution Frame (MDF) is essential for managing and organizing telecommunication and networking cables. It acts as the central hub for connecting various network systems, facilitating smooth signal distribution, and minimizing downtime during maintenance.

Design and Structure

MDF is typically made from durable steel or aluminum, designed to house multiple racks of cables. It features a modular structure, allowing for easy installation and expansion. The frame is equipped with patch panels, terminal blocks, and other components for efficient cable routing and organization.

Applications

• Telecom networks

• Data centers

• Fiber optic networks

• Cable management systems

• Voice and data services

Advantages

• Efficient Cable Management: Keeps cables organized, reducing tangling and improving airflow.

• Scalability: Modular design supports future expansions and upgrades.

• Durability: Made from high-quality materials to ensure long-term reliability.

• Easy Troubleshooting: Centralized layout makes fault isolation and maintenance faster.

FAQs

Q1: What is the primary purpose of the Main Distribution Frame?
The MDF acts as the central hub for organizing and connecting telecommunications cables and networks.

Q2: Can the MDF be expanded?
Yes, the MDF features a modular design, making it easy to scale for future needs.

Q3: How is the MDF installed?
Installation is straightforward, with clear instructions for mounting and connecting cables.

Q4: Is it suitable for fiber optic networks?
Absolutely. The MDF supports both copper and fiber optic cable connections, ensuring versatility.
