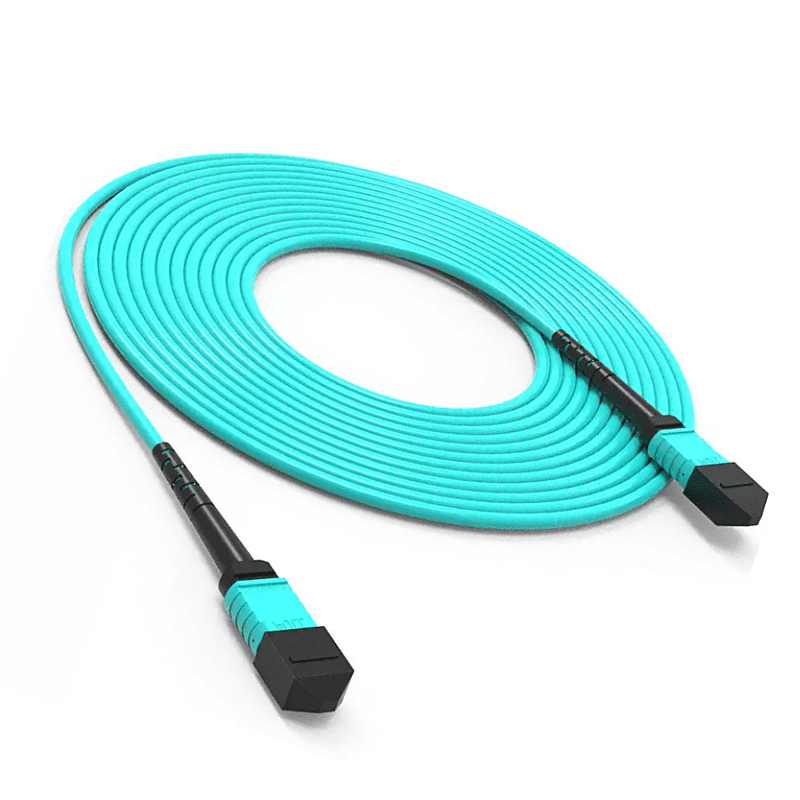

MPO Patch Cord

This MPO patch cord enables high-speed, parallel optical connections in a compact design. Available in OM3, OM4, and OS2 single-mode options, it supports multiple fiber cores (8, 12, 24, 32, or more) to meet diverse networking needs. Its plug-and-play design makes it ideal for data center interconnects and backbone cabling.

1. Structure & Design

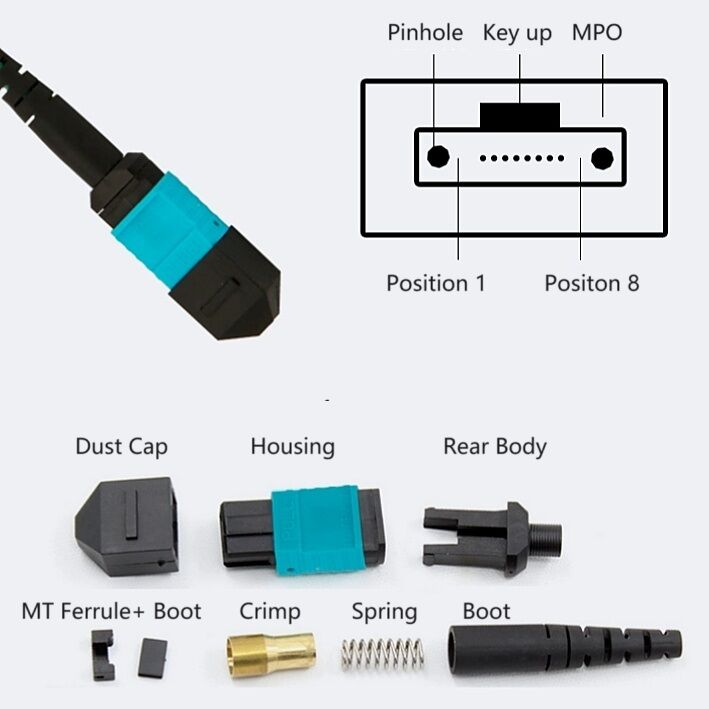

• High-Density MPO/MTP Connector: Available in 8, 12, 24, 32, or more fiber cores.
• Fiber Type Options: OM3/OM4 multimode (aqua or violet jacket) and OS2 single-mode (yellow jacket).
• Low-Loss & Standard-Loss Versions: Ensures optimal performance for long-distance or short-reach applications.
• Push-Pull Latch Design: Simplifies installation and ensures secure connections.
• Polarity Options: Type A, Type B, and Type C configurations for flexible networking.

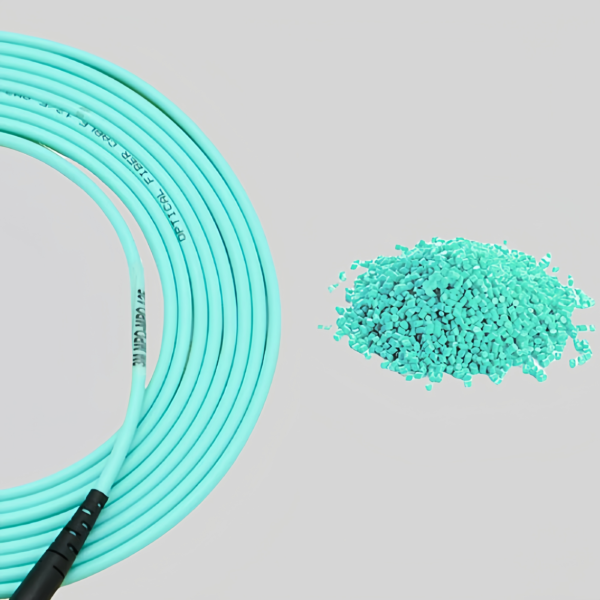

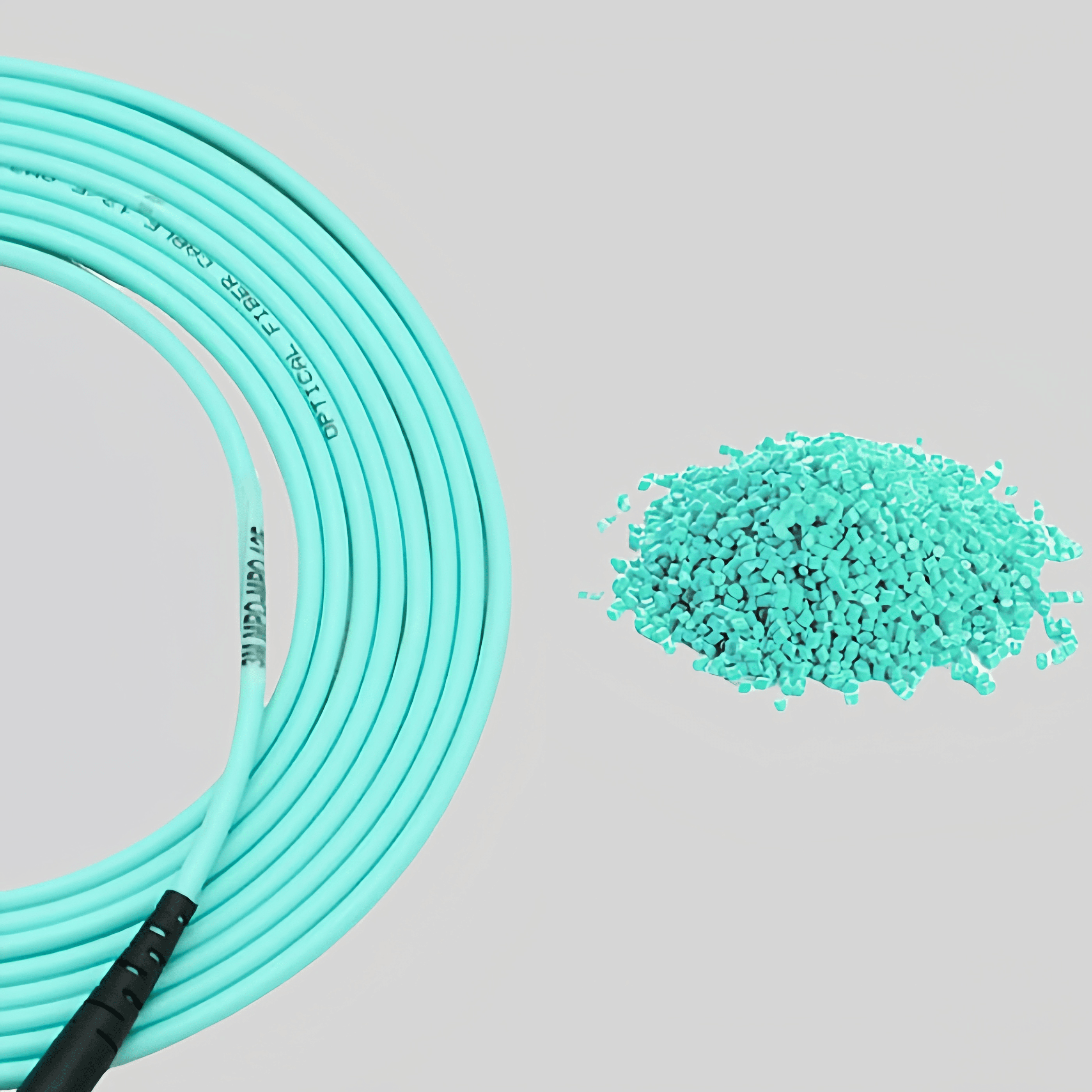

• Rugged Jacket (PVC, LSZH, or OFNP): Provides durability for different environments.

2. Applications

• Data Centers: High-speed 40G, 100G, and 400G backbone connections.
• Enterprise Networks: Scalable fiber infrastructure for cloud and virtualization.
• Telecom & High-Performance Computing: Supports next-generation optical networks.
• Fiber-to-the-Home (FTTH): Used in high-density optical fiber installations.

3. Advantages

• Ultra-High Bandwidth: Supports high-speed data transmission for modern networks.
• Space-Saving Design: Compact MPO connectors reduce cabling bulk.
• Fast Deployment: Plug-and-play solution for quick installation.
• Low Insertion & Return Loss: Ensures stable and efficient transmission.
• Custom Configurations Available: Different lengths, fiber types, and polarities.

4. FAQs

• What is the difference between MPO and MTP?
  MTP is an enhanced version of MPO with better mechanical and optical performance.
• Can MPO patch cords be used for 100G and 400G Ethernet?
  Yes, MPO patch cords support 100G and 400G Ethernet using parallel optics.
• What is the standard fiber count for MPO cables?
  Common options include 8, 12, 24, 32, or more fibers per cable.
• What polarity types are available for MPO patch cords?
  MPO cables come in Type A (Straight), Type B (Reverse), and Type C (Pair Flip) configurations.
• Which jacket type should I choose?
• PVC for standard use
• LSZH for low-smoke, halogen-free environments
• OFNP for plenum-rated installations
