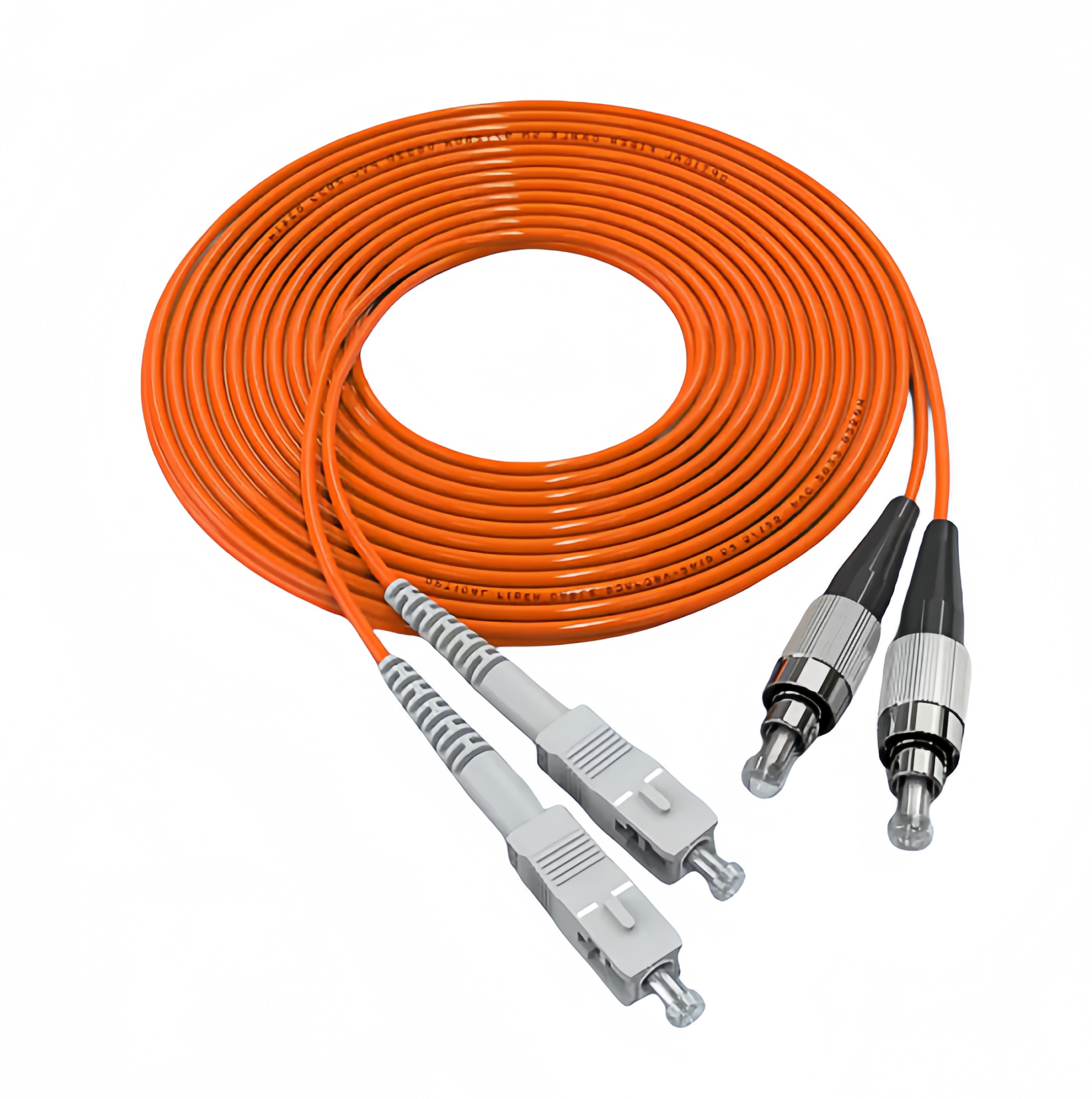

OM1 OM2 Fiber Optic Patch Cord

OM1 and OM2 multimode fiber patch cords provide cost-effective, high-speed data transmission for short-range applications. OM1 (orange, 62.5/125µm) is suitable for standard multimode networks, while OM2 (orange, 50/125µm) offers better bandwidth and performance for Gigabit Ethernet.

Structure & Design

• Multimode Fiber Core: OM1 (62.5/125µm) and OM2 (50/125µm) for high-speed transmission.

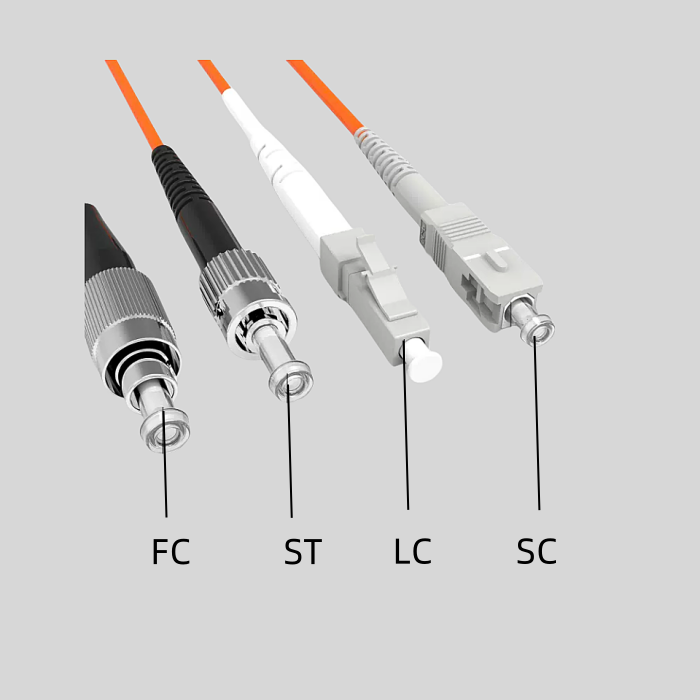

• Various Connector Types: Available in LC, SC, ST, FC with UPC or APC polishing.

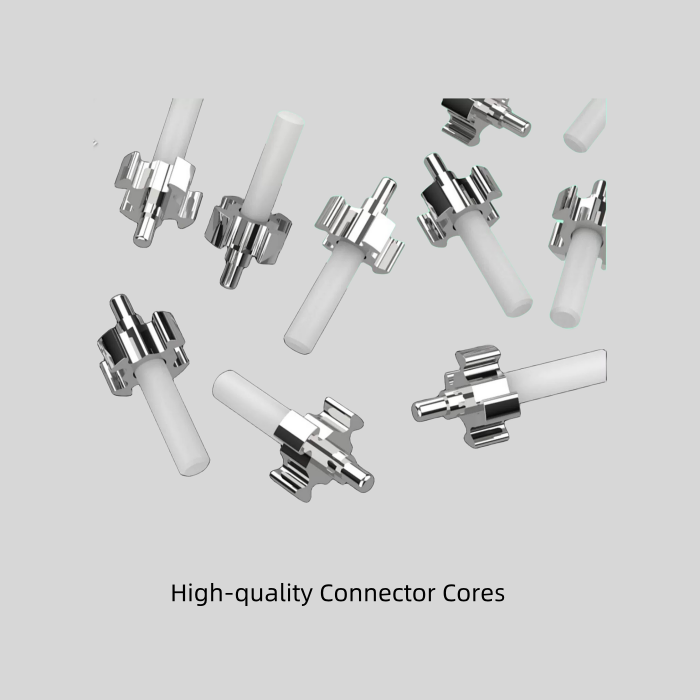

• Precision Ceramic Ferrules: Ensures low insertion loss and high return loss.
• Duplex or Simplex Configuration: Supports different networking needs.

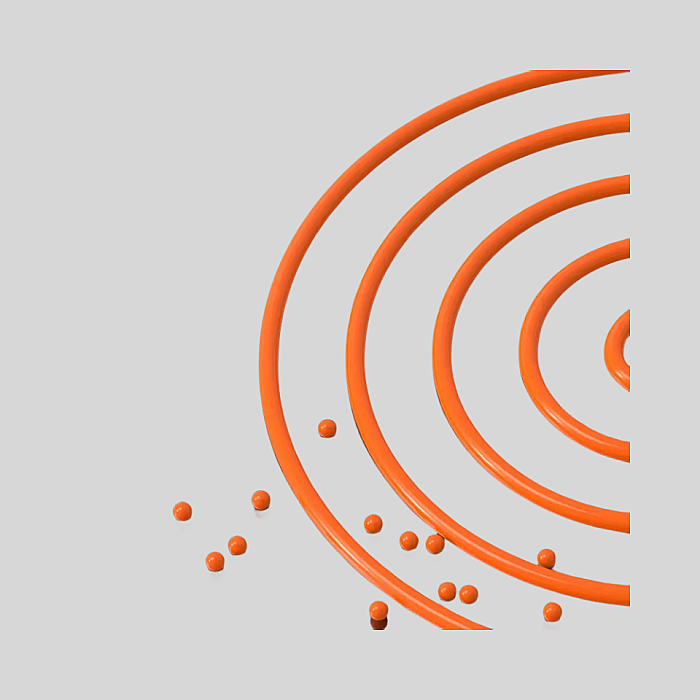

• PVC or LSZH Jacket: Provides safety and durability for different environments.

Applications

• LAN and Data Centers: Ideal for short-distance, high-speed network connections.
• Gigabit Ethernet: Supports up to 1Gbps transmission.
• FTTH and FTTB Networks: Used in fiber-to-the-home/building applications.
• Multimode Fiber Testing: Suitable for lab and field testing equipment.

Advantages

• Cost-Effective: More affordable than single-mode fiber for short-distance links.
• High-Speed Performance: OM2 supports Gigabit Ethernet with better bandwidth.
• Reliable Optical Transmission: High-quality connectors and ferrules for minimal signal loss.
• Multiple Connector Options: Compatible with a wide range of network devices.
• Fire-Resistant Options: LSZH jacket available for safer indoor installations.

FAQs

• What is the difference between OM1 and OM2 fiber?
  OM1 has a 62.5µm core and supports up to 1Gbps over 275m, while OM2 has a 50µm core and supports 1Gbps over 550m with better bandwidth.
• Can I use OM1 and OM2 cables together?
  It is not recommended as they have different core sizes, which can cause signal loss.
• What connector types are available?
  OM1/OM2 patch cords come with LC, SC, ST, and FC connectors, with UPC or APC polish options.
• Is OM2 suitable for 10G Ethernet?
  OM2 supports 10Gbps up to 82m, but for longer distances, OM3 or OM4 is recommended.
• Which jacket type should I choose?
  Choose PVC for standard use and LSZH for safer indoor installations.
