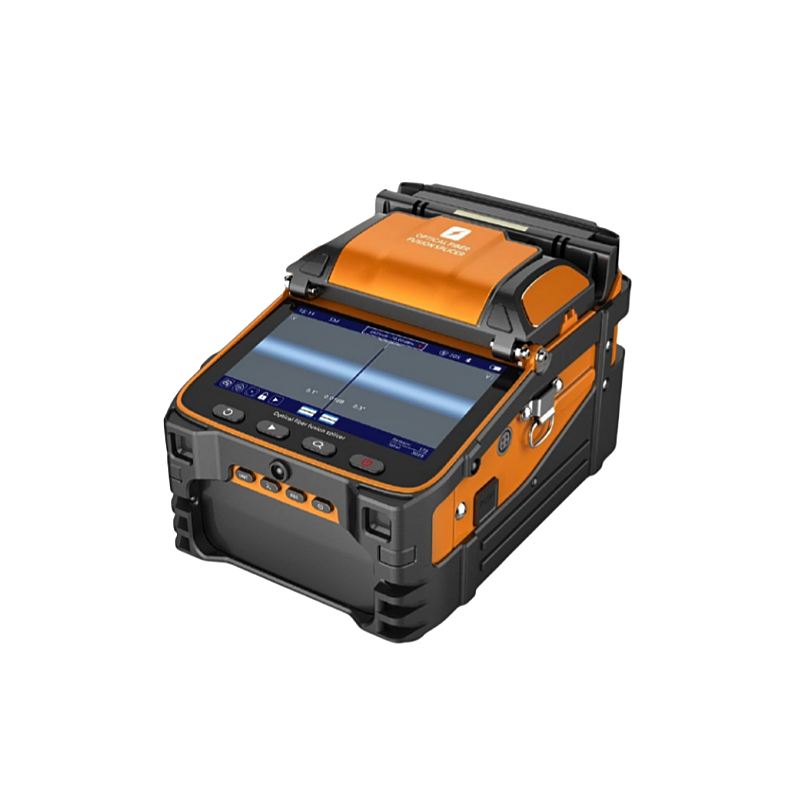

Optical Fiber Fushion Splicer

Description

This Optical Fiber Fushion Splicer is fully qualified with trunk construction of medium and short distance, FTTH project, security monitoring and other fiber cable splicing projects.Under the conditions of rigorous testing, the performance is still outstanding; toolbox is small, exquisite, durable, and with unique bench design. The design of operating platform reflects the humanistic care; unique lighting design, it is convenient for night construction or repair. Screen brightness is adjustable and it is convenient for outdoor sunshine environment operation. The core parts are using imported brands, aviation metal body material with exquisite details. With the combination of advanced technology and design, the new generation of optical fiber fusion splicer will bring you a reliable and comfortable user experience.

1. Structure & Design

• Alignment Method: Core alignment with six motors

• Display: 5-inch high-resolution TFT color screen (800×480) with dual-camera view

• Splice Time: Average 6–8 seconds

• Heating Time: Average 15–18 seconds

• Electrode Life: Up to 3000 discharges, replaceable

• Battery Capacity: Built-in lithium battery, up to 200 splice and heat cycles per charge

• Connectivity: USB port for software upgrades and data transfer

• Design: Compact, shockproof, and weather-resistant body for outdoor use

• Storage: Internal memory for up to 10,000 splice records

2. Applications

• Fiber-to-the-Home (FTTH) installations

• Backbone and access network projects

• Data centers and telecommunication rooms

• On-site emergency fiber repair

• Fiber optic maintenance and service providers

3. Advantages

• Core alignment ensures low splice loss and high reliability

• Fast splicing and heating time for high work efficiency

• Durable design for harsh environments

• User-friendly interface with intuitive menu navigation

• Real-time splice loss estimation and automatic fiber type identification

• High-capacity battery supports long field work

• Supports multiple languages

4. FAQs

Q1: What types of fibers are compatible with HY-11?
A1: HY-11 supports SM (single-mode), MM (multi-mode), DS (dispersion-shifted), and NZDS (non-zero dispersion-shifted) fibers.

Q2: Is the splicer suitable for FTTx applications?
A2: Yes, HY-11 is ideal for FTTx installations due to its fast operation and high accuracy.

Q3: Can the battery be replaced?
A3: The battery is built-in but rechargeable and designed for long-term use with high capacity. Battery replacement is supported through service.

Q4: How is the splicer calibrated or updated?
A4: HY-11 can be updated and calibrated via USB connection with a PC or through software provided by the manufacturer.

Q5: What’s included in the standard kit?
A5: The standard kit includes the fusion splicer, cleaver, stripping tools, spare electrodes, battery charger, cooling tray, carrying case, and user manual.
