Single mode Fiber Optic Patch Cord

A single-mode fiber optic patch cord is a high-performance cable used to connect network devices, providing stable and low-loss data transmission. It is available in different connector types (LC, SC, FC, ST) and jacket materials (PVC, LSZH) to suit various installation environments.

1. Structure & Design

• Single-Mode Fiber (OS1/OS2): Ensures long-distance transmission with minimal signal loss.

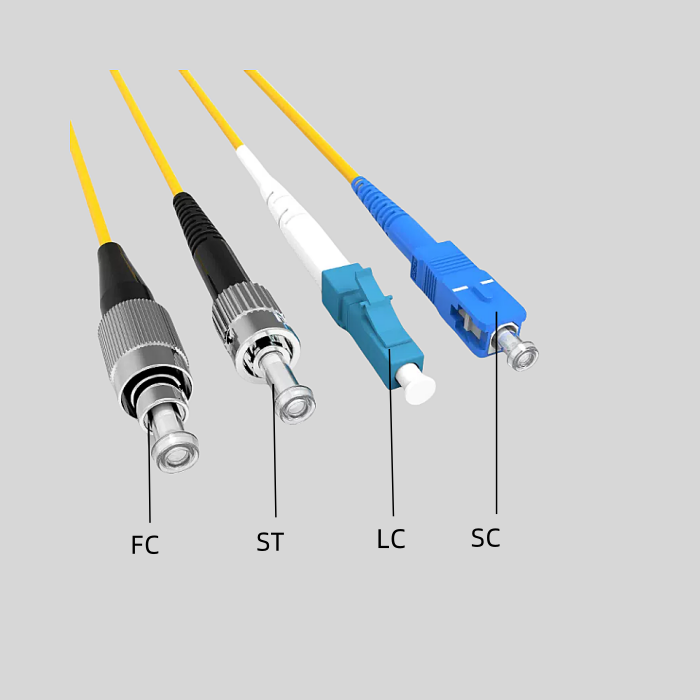

• Connector Types: Available in LC, SC, FC, ST with UPC or APC polishing.
• High-Precision Ceramic Ferrules: Provides superior alignment for low insertion loss.

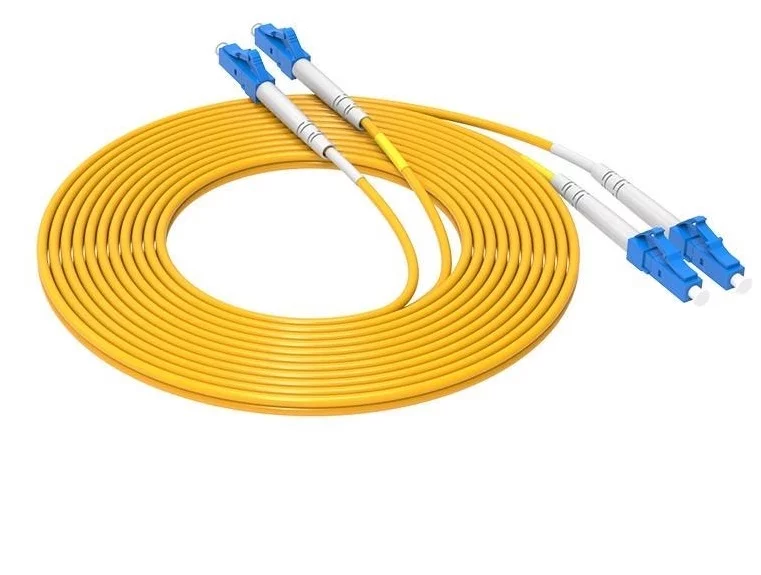

• Duplex or Simplex Design: Available in both configurations for different networking needs.
• Jacket Materials: PVC or LSZH for fire safety and environmental protection.

2. Applications

• Data Centers and Enterprise Networks: Used for fiber connections in high-speed networks.
• Telecom and FTTH Networks: Essential for long-distance optical transmission.
• Test Equipment: Used for fiber optic testing and measurement.
• Industrial and Military Applications: Reliable for demanding environments.

3. Advantages

• Ultra-Low Attenuation: Ensures stable long-distance transmission.
• High Durability: Precision connectors and high-quality materials for long-term use.
• Multiple Connector Options: Compatible with various fiber optic devices.
• Fire-Resistant and Safe: LSZH jacket options available for indoor environments.
• Customizable Lengths: Available in different lengths to fit specific network requirements.

4. FAQs

• What is the maximum transmission distance of a single-mode patch cord?
  It can transmit signals up to 40km or more, depending on the fiber type and network equipment.
• What is the difference between UPC and APC connectors?
  UPC (Ultra Physical Contact) has a flat polish for low insertion loss, while APC (Angled Physical Contact) has an 8° angle for lower reflection, ideal for high-precision applications.
• Can I use a single-mode patch cord in a multimode network?
  No, single-mode fiber has a much smaller core size and is not compatible with multimode equipment.
• What connector type should I choose?
  LC is compact for high-density setups, SC is widely used in telecom, FC is great for high-precision applications, and ST is common in industrial settings.
• Is LSZH better than PVC?
  LSZH (Low Smoke Zero Halogen) is safer for indoor use as it reduces toxic fumes in case of fire, while PVC is cost-effective and durable.
