Quick Answer

Duct fiber optic cables are installed inside protective conduits, offering better protection, easier maintenance, and long-term scalability. Direct buried cables are placed directly underground, providing a lower upfront cost but requiring more effort for maintenance and upgrades.
Duct systems are ideal for urban and expandable networks, while direct burial is better suited for rural or cost-sensitive projects.

Introduction

When planning a fiber optic network, choosing the right installation method is just as important as selecting the cable itself. The decision between duct installation and direct burial can significantly affect installation efficiency, long-term maintenance, and overall project cost.

In many modern telecom and infrastructure projects, engineers increasingly prefer solutions where the cable is protected within a conduit system. This approach not only improves durability but also makes future upgrades far easier compared to traditional direct burial methods.

What is a Duct Fiber Optic Cable?

A duct-based installation refers to placing fiber optic cables inside a protective conduit rather than directly in the ground. This setup creates an additional layer of protection against external damage, such as soil pressure, moisture, and accidental excavation.

In practical deployments, a duct fiber optic cable system allows operators to install, remove, or upgrade cables without disturbing the surrounding environment. This is particularly valuable in urban areas where digging can be costly and disruptive.

Another advantage is that the conduit itself becomes part of the long-term infrastructure. Once installed, the same pathway can be reused multiple times. In fact, many network planners treat the fiber cable duct as a permanent asset that supports future expansion.

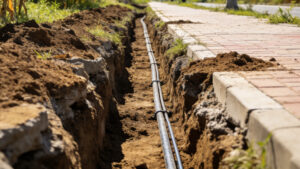

What is a Direct Buried Fiber Optic Cable?

Direct burial is a simpler installation method where the cable is placed directly into the ground without additional conduit protection. To withstand this environment, the cable must be designed with stronger materials and protective layers.

A typical direct buried fiber optic cable includes reinforced outer jackets, water-blocking components, and often metallic armor to resist mechanical stress and environmental exposure.

This method is widely used in rural areas and long-distance backbone routes where installing ducts may not be economically practical.

Key Differences Between Duct and Direct Buried Fiber Optic Cable

1. Installation Method

Duct systems require the installation of conduits before the cable is deployed. Once the duct is in place, cables can be pulled or blown through it using specialized equipment.

Direct burial, on the other hand, involves placing the cable directly into a trench and covering it with soil. While this approach is simpler, it offers less flexibility for future modifications.

In environments where soil compaction and rodent activity are common, reinforced constructions similar to steel tape armored fiber optic cable for underground use provide enhanced durability.Conduit systems, on the other hand, distribute external forces across the protective pipe rather than the cable itself.

2. Protection Level

One of the main advantages of duct systems is the dual layer of protection. The cable is safeguarded not only by its own structure but also by the surrounding conduit.

In contrast, direct buried cables rely entirely on their internal design. Although they are built to be robust, they remain more exposed to environmental risks such as moisture, ground movement, and accidental damage.

3. Maintenance and Repair

Maintenance is where the difference becomes most noticeable. In duct systems, damaged cables can often be replaced by pulling a new cable through the existing conduit.

With direct burial, repairs usually require excavation, which increases both time and cost. This limitation is one reason why many modern networks invest in an underground fiber duct system to simplify long-term operations.

4. Scalability and Future Expansion

Duct infrastructure is inherently scalable. Once ducts are installed, additional cables can be added without further excavation. This makes it easier to expand network capacity as demand grows.

Direct buried systems lack this flexibility. Any expansion typically requires new trenching, which can disrupt existing infrastructure and increase costs.

5. Cost Considerations

From a short-term perspective, direct burial is usually more cost-effective because it eliminates the need for conduit installation.

However, duct systems often provide better long-term value. Reduced maintenance costs, easier upgrades, and longer service life can offset the higher initial investment.

Comparison Table

When to Choose Direct Burial

Direct burial is often preferred when:

• Project budget is constrained
• Deployment is in rural or low-traffic areas
• Future cable replacement is unlikely
• Trenching cost dominates total expense

For long rural routes or backbone connections, deployment decisions may also align with engineering principles used in long distance underground fiber optic cable projects where mechanical strength becomes more important than maintenance flexibility.

When to Choose Duct Installation

Conduit systems are generally recommended when:

• Urban expansion is expected
• Network upgrades are planned
• High-value metropolitan zones require minimal service interruption
• Regulatory codes demand additional protection

Duct-based networks offer greater scalability in high-density areas.

There is no universal answer. The appropriate choice depends on terrain, budget, expansion planning, and regulatory requirements.

In large-scale infrastructure planning, the decision between these methods is typically integrated within overall underground fiber optic cable system design frameworks where performance, cost, and longevity must be balanced.

Industry Trends

As fiber networks continue to expand, especially with the growth of FTTH and smart city infrastructure, duct systems are becoming increasingly popular.

Technologies such as microduct and air-blown fiber allow operators to install cables more efficiently while maximizing the use of existing infrastructure. This trend reflects a broader shift toward scalable and future-ready network design.

Frequently Asked Questions

What is the difference between duct and direct buried fiber optic cable?
Duct cables are installed inside conduits for better protection and easier maintenance, while direct buried cables are placed directly underground with lower upfront cost.

Which installation method is better for long-term use?
Duct systems are better for long-term use because they allow easier upgrades and maintenance without excavation.

Is direct buried fiber optic cable cheaper?
Yes, direct burial usually has a lower initial cost since no conduit infrastructure is required.

Can cables in ducts be replaced easily?
Yes, duct systems allow cables to be replaced or upgraded without digging.

Where are duct fiber optic cables commonly used?
They are widely used in urban telecom networks, FTTH deployments, and infrastructure projects.

Conclusion

Both duct and direct buried fiber optic cables play important roles in network deployment. The right choice depends on your specific project requirements, including budget, environment, and long-term goals.

Duct systems offer greater flexibility, protection, and scalability, making them ideal for modern and growing networks. Direct burial, on the other hand, provides a simpler and more cost-effective solution for projects with limited expansion needs.

By carefully evaluating your installation environment and future plans, you can select the most suitable approach and ensure reliable network performance for years to come.
